Fakta:

Šířka slova je 32 bitů. Do paměti se ukládá 33, poslední bit je paritní.
Jedno 32 bitové slovo sestává ze dvou 16-ti bitových půlslov.
Používá 17-ti bitovou adresu, (AN/FSQ-8 16-ti bitovou)

Obrázek 77.16. Instrukční slovo AN/FSQ-7

|                                                               |                                                               |
|<---------------------- LEFT HALF-WORD ----------------------->|<---------------------- RIGHT HALF-WORD ---------------------->|
|                                                               |                                                               |
+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+
|LS |L1 |L2 |L3 |L4 |L5 |L6 |L7 |L8 |L9 |L10|L11|L12|L13|L14|L15|RS |R1 |R2 |R3 |R4 |R5 |R6 |R7 |R8 |R9 |R10|R11|R12|R13|R14|R15|
+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+
|   |           |           |     CLASS     |                   |                                                               |
|   |<--INDEX-->|<--CLASS-->|<--VARIATION-->|                   |<-------------------------- ADDRESS -------------------------->|
|   | INDICATOR |           |           |                       |                                                               |
|   |           |           |           |<----- AUXILIARY ----->|                                                               |
| ↑ |           |           |           |
  |
  +---- FIRST BIT OF ADDRESS

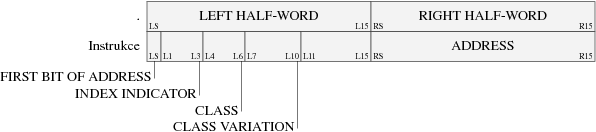

Obrázek 77.17. Instrukční slovo AN/FSQ-7

Tabulka 77.20. Sumary of AN/FSQ-8 instructions

Instruction Name	Mnemo. Name	Octal Code	Exec. Time	Indexable	Cause Overflow
Reset Index Register from Right Accumulator	XAC	764	6μs	No	No
Store Address	STA	340	18μs	Yes	No
Add Index Register	ADX	770	6μs	No	No
Clear and Add Magnitudes	CAM	160	12μs	Yes	No
Difference Magnitudes	DIM	164	12μs	Yes	No
Add B Registers	ADB	114	12μs	No	Yes
Multiply	MUL	250	17±0.5μs	Yes	No
Twin and Multiply	TMU	254	17±0.5μs	Yes	No
Divide	DVD	260	51.5±0.5μs	Yes	No
Twin and Divide	TDV	264	51.5±0.5μs	Yes	No
Shift Left and Round	SLR	024	Variable	No	Yes
Dual Shift Left	DSL	400	Variable	No	No
Dual Shift Right	DSR	404	Variable	No	No
Left Element Shift Right	LSR	440	Variable	No	No
Right Element Shift Right	RSR	444	Variable	No	No
Accumulators Shift Left	ASL	420	Variable	No	No
Accumulators Shift Right	ASR	424	Variable	No	No
Dual Cycle Left	DCL	460	Variable	No	No
Full Cycle Left	FCL	470	Variable	No	No
Extract	ETR	004	12μs	Yes	No
		000	μs

Inspirován architekturou Whirlwind II

Součást SAGE

MIT and IBM developed the IBM AN/FSQ-7 computer to run the SAGE centers.
